10 hours 45 minutes ago #25194 by JustusderJaeger
My first sound system: critical review was created by JustusderJaeger
Dear community, thank you already so much for teaching me so much about this wonderful nerd stuff <3
Its been a wild ride the past months designing my first small sound system and I'd like to ask you for a critical review before I dump more money into this hobby.

The sound system is beeing made for a indoor party in a small room approximately 30m² with spill into a garden.
Afterwards I want to use it for (loud) listening sessions and other small partys. So I'd say its a HiFi-PA-Hybrid (if that exists), but it is DSP managed and crown powered.
I'd love to have the system as a decent all rounder. I want to play everything from and in between Bossa Nova, to Funk, Disco, Raggea to some warm House and Break Beat - you get the idea.

Here's the current design:

Sub:
Cubo Sub
18" Driver tbd / im thinking RCF LF18G401 / RCF LF18X401 / B&C 18TBW100
35 - 100 Hz

Mid-Bass:
Vented enclosure
JBL 2226H (bought)
100 - 700 Hz

Tops:
Hornloaded HF
Altec 902-8T (bought)
Altec 811b (bought)
700 - 20 kHz

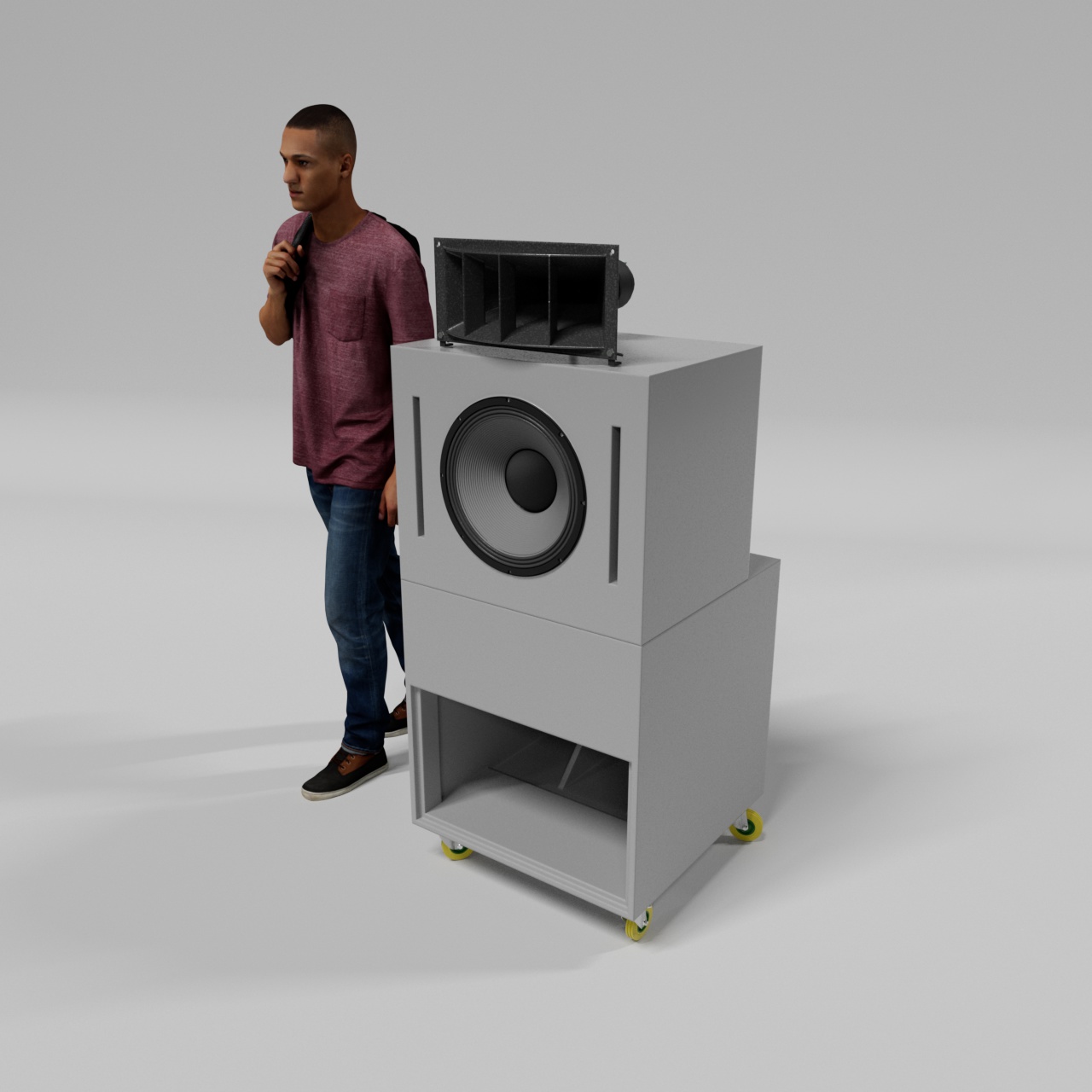

I've made a 3D reference for this cutie. Obviously there will be two of these, for Stereo :)
Please let me know what you think, what you dont like, what you like etc.
Also I still need a driver for the Cubo Sub, lmk if you have any good recommendations!
