starting to build my own sound system
- dub
- Topic Author
- Offline
- New Member
Less
More
9 years 3 months ago - 9 years 3 months ago #22926
by dub
starting to build my own sound system was created by dub
hi guys im thinking to start to build a custom sound system for dub,steppas and need some advise
my idea is to build a 4 way system with
four 21 inch sub scoop bins
two 21 inch kick scoop bins
four 18 inch mid high horns
and two times 4 tweeter boxes (Icosagonal)
i would like to run with a custom built pre amp with internal crosover and 10 band graphic eq (ENFORCER JTS or dubsonic dub master)
but i would like to have the design clear before buying any components
my question is i cant find plans for a 20 inch super scooper for the 4 subs and 2 kick bins
and not sure what the best design is for the four 18 inch horns
and when it comes to buying drivers and amps i am completely lost as their are so many
am i going in the right direction
thanks in advance

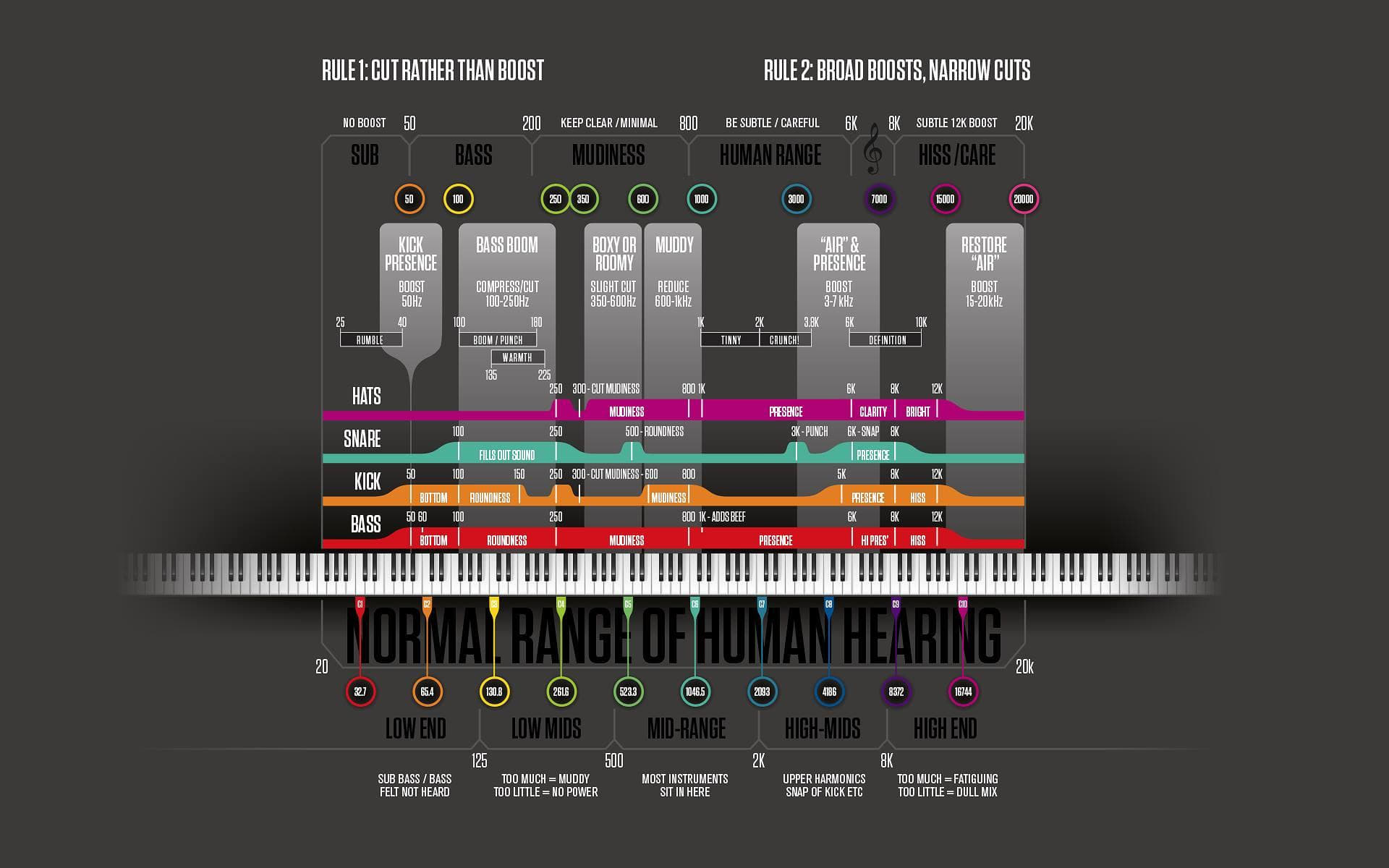

looking for some thing like the picture
my idea is to build a 4 way system with
four 21 inch sub scoop bins
two 21 inch kick scoop bins
four 18 inch mid high horns
and two times 4 tweeter boxes (Icosagonal)
i would like to run with a custom built pre amp with internal crosover and 10 band graphic eq (ENFORCER JTS or dubsonic dub master)
but i would like to have the design clear before buying any components
my question is i cant find plans for a 20 inch super scooper for the 4 subs and 2 kick bins
and not sure what the best design is for the four 18 inch horns
and when it comes to buying drivers and amps i am completely lost as their are so many
am i going in the right direction
thanks in advance
looking for some thing like the picture
Last edit: 9 years 3 months ago by dub. Reason: spelling
Please Log in or Create an account to join the conversation.
- bee
- Offline
- Platinum Member
Less
More
- Posts: 2090
- Thank you received: 34
9 years 3 months ago - 9 years 3 months ago #22951
by bee
Replied by bee on topic starting to build my own sound system
one word, ok a few, 21" high bass and 18" mid high, sorry this will sound bad..... the transient response of a 21 makes it too slow for anything over 120hz, and the same with an 18" for mid high....
Stick to a 15" for high bass and a 12" for the mid high..... for me 18's as high bass and even kick just sound so slow..... unless you want to spend big big money on very high quality drivers, that still will only sound ok.... but defo not an 18" for midtop....
Also scoop on scoop for high bass is another bad idea (re picture) the top scoop will cancel out.
Stick to a 15" for high bass and a 12" for the mid high..... for me 18's as high bass and even kick just sound so slow..... unless you want to spend big big money on very high quality drivers, that still will only sound ok.... but defo not an 18" for midtop....
Also scoop on scoop for high bass is another bad idea (re picture) the top scoop will cancel out.
Last edit: 9 years 3 months ago by bee.
