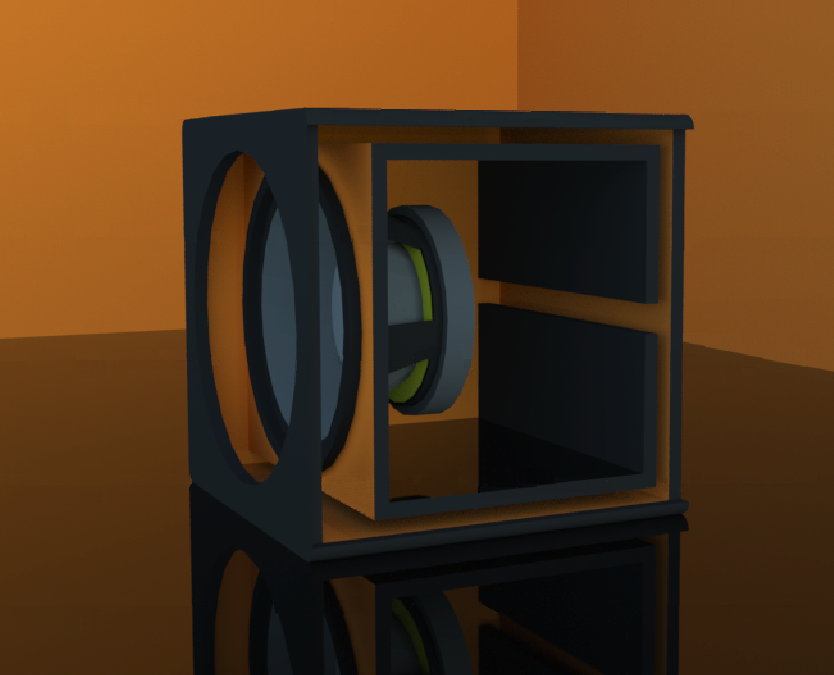

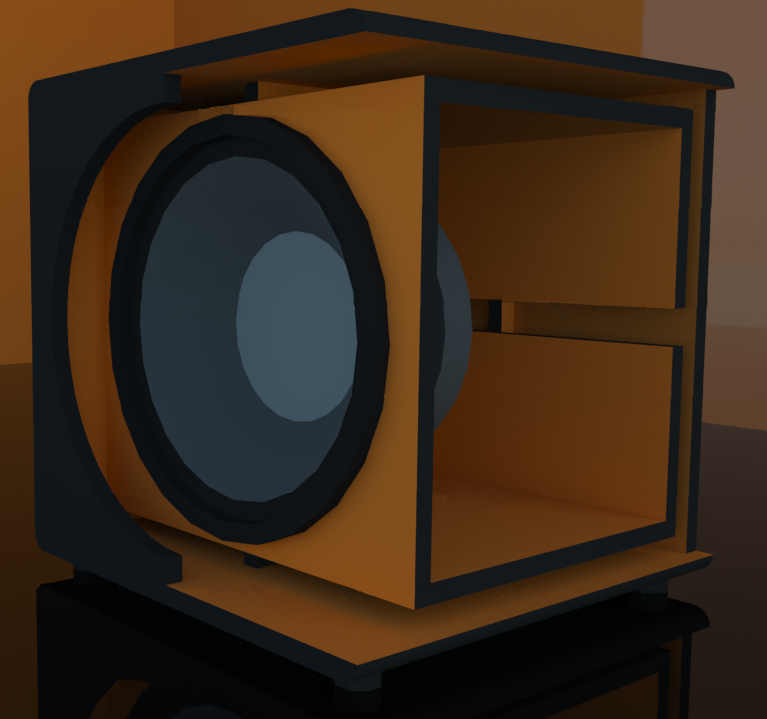

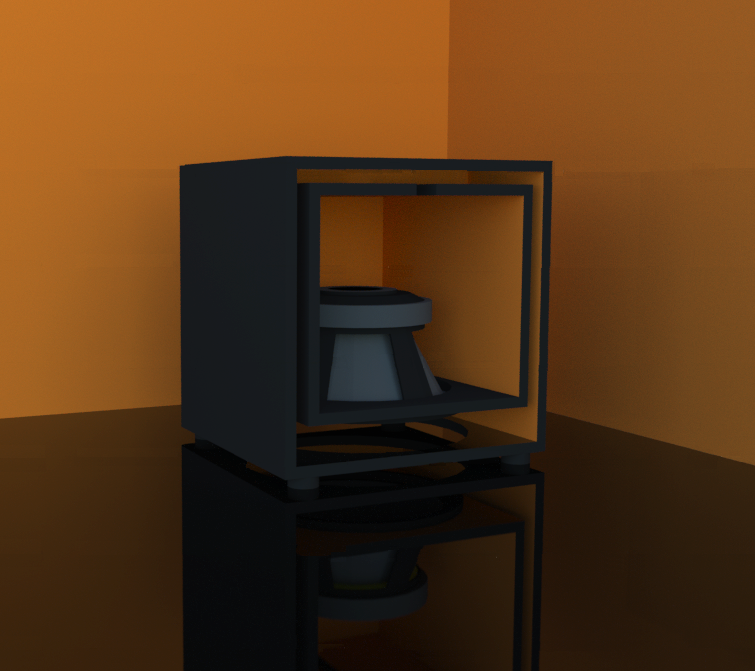

Cubo Home

If you could only have one sub, build Cubo Home. If you can have three subs, build two Cubo Home and one Cubo Infra.

Cubo Home is great for above average levels of sub bass, with just about any sub amplifier. Not just at home but in your car or about anywhere else. It's your day-to-day go-to sub, whether for music, gaming, movies or to entertain a small flock of friends or family.
It will work with a very wide range of 12" drivers, even those that weren't designed for sub bass performance. Designed for all 12” PA midbass or bass drivers, to atain an usable frequency response down to 30-ish Hz*. Tested with drivers such as the 18 Sound 12W700, 12ND930, 12NLW9300, the Precision Devices 12SB30 and the Eminence Delta 12LF. Other suitable drivers that come to mind are The Box 12-280/8-A, 12-280/8-W and the Dayton Audio PA310-8. Cubo Home is also suitable for 12” home audio and many car audio drivers. It will even work with 10" drivers, especially those geared towards high excursion capabilities. If you're unsure a driver is suited, e-mail me at This email address is being protected from spambots. You need JavaScript enabled to view it.

* To maximize low frequency performance, loosely fill the rear chamber with fibers, such as Polyfill/ Fiberfill, without blocking the airflow to the driver and port.

Size: 40 x 40 x 40 cm (Imperial 16 x 16 x 16 inch)
Frequency: From 30 Hz up to 100 Hz
Enclosure Type: Reflex/ 6th Order Series Bandpass

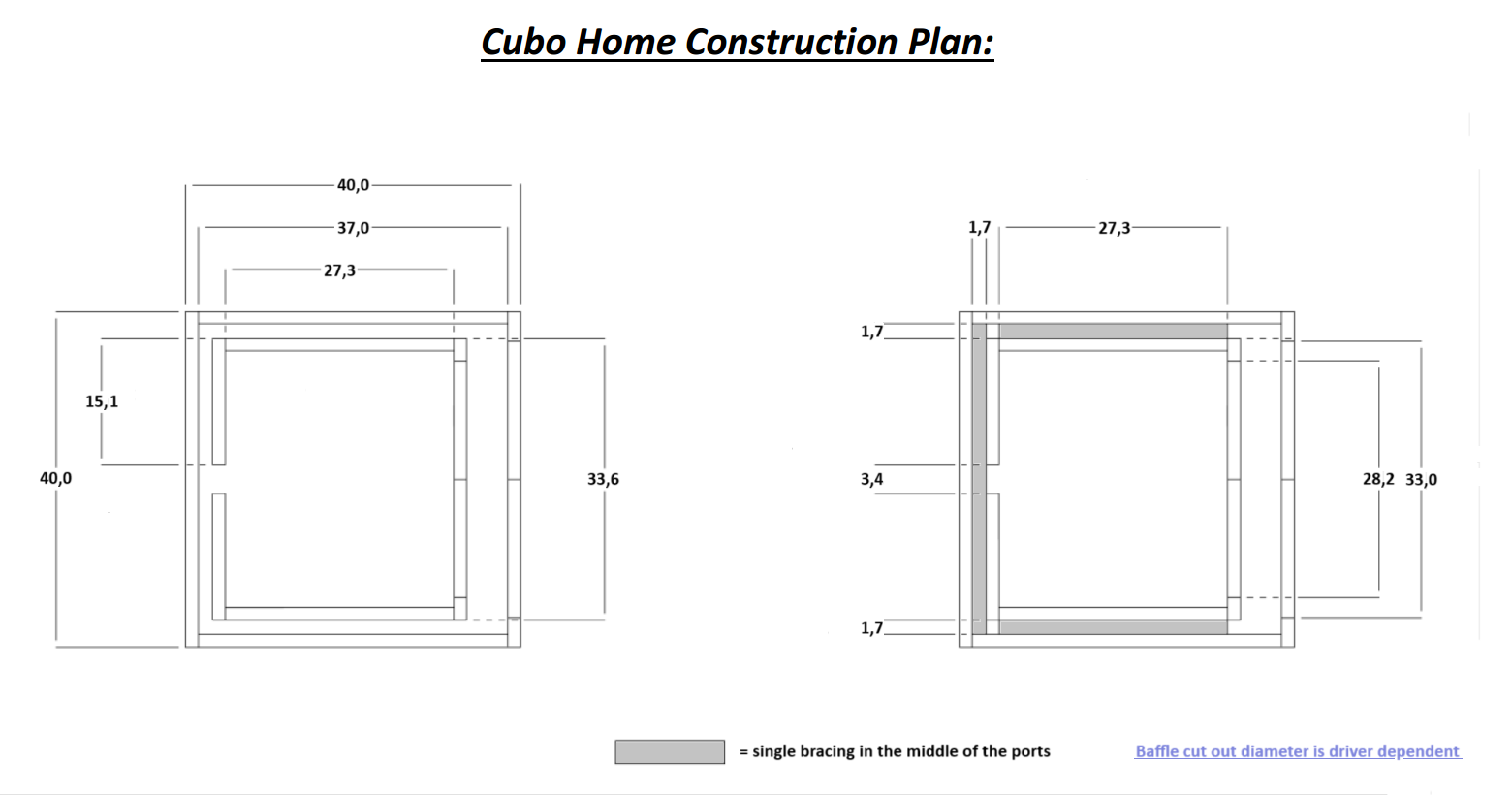

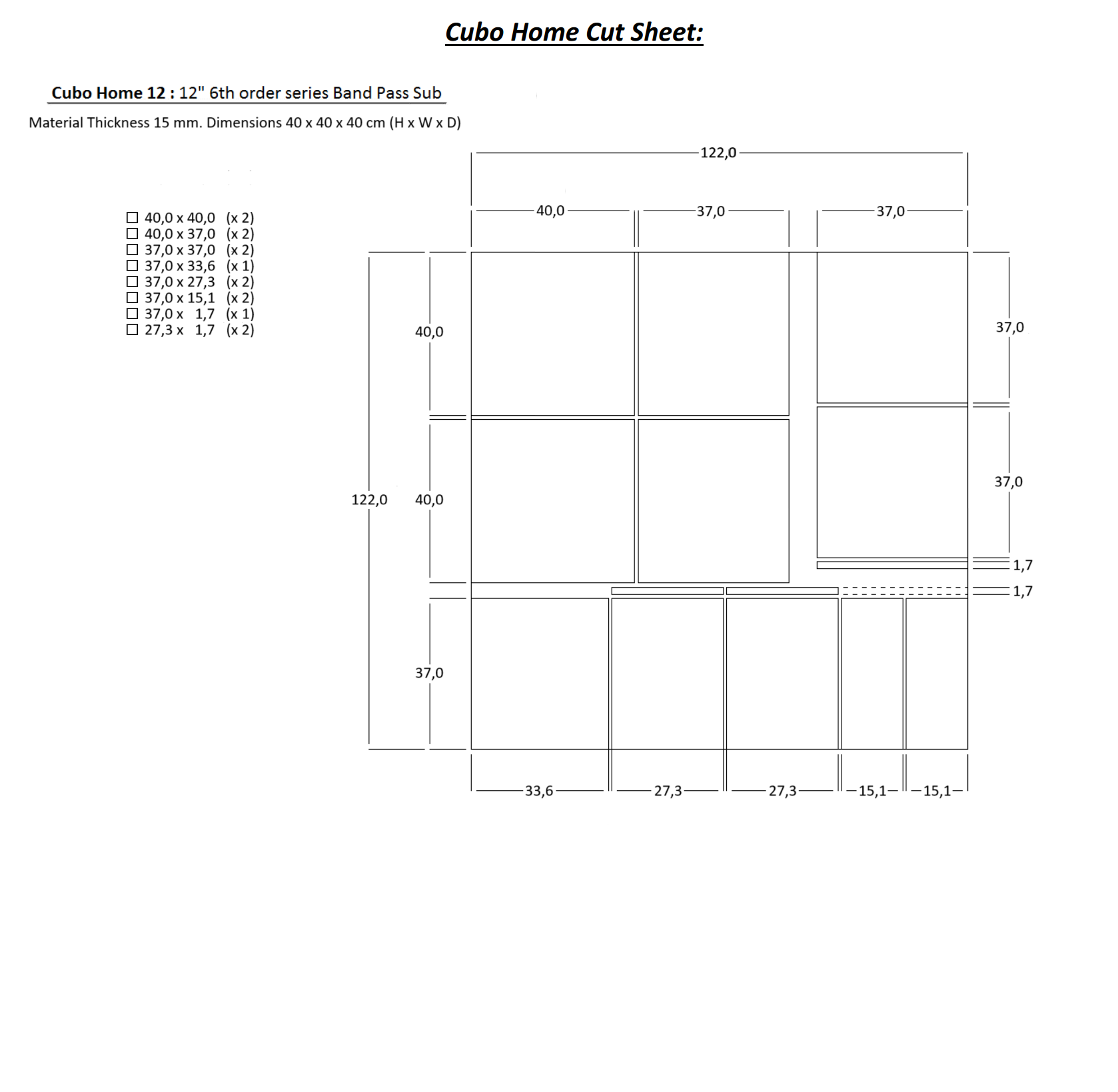

Construction: Cut from half a sheet of 15 mm MDF (122 cm x 122 cm), no angled cuts.

Development: Many moons ago, Cubo Stealth (then known as the MiniBass) was designed, to give Cubo-Sub-like performance at home and in the car. Cubo Home and Cubo Car are its offspring, that have undergone further optimisation.

The plans for Cubo Home are released for two reason's:

1. The realisation that If you could only have one sub, you should build Cubo Home. And if
   you can have three subs, you should build two Cubo Home and one Cubo Infra. Till
   recently this was difficult to achieve, because the plans for Cubo Home weren't freely
   available.
2. To celebrate the 1K subscriber count for the Black & Blue Bass Boosted channel
   ( https://www.youtube.com/@custombassboosts ). Here you'll find a wide range of bass
   boosted songs that all sound great with Cubo Home and a few that will sound amazing
   with Cubo Infra.

For future reference: Cubo Home, Cubo Stealth and Cubo Car performance are interchangeable in all
of the above :) The measurements and the enclosure itself have been lost to time.
